The Leader in Heavy-Duty Vehicle Lifts
We Carry the Full Line of Stertil-Koni Equipment…

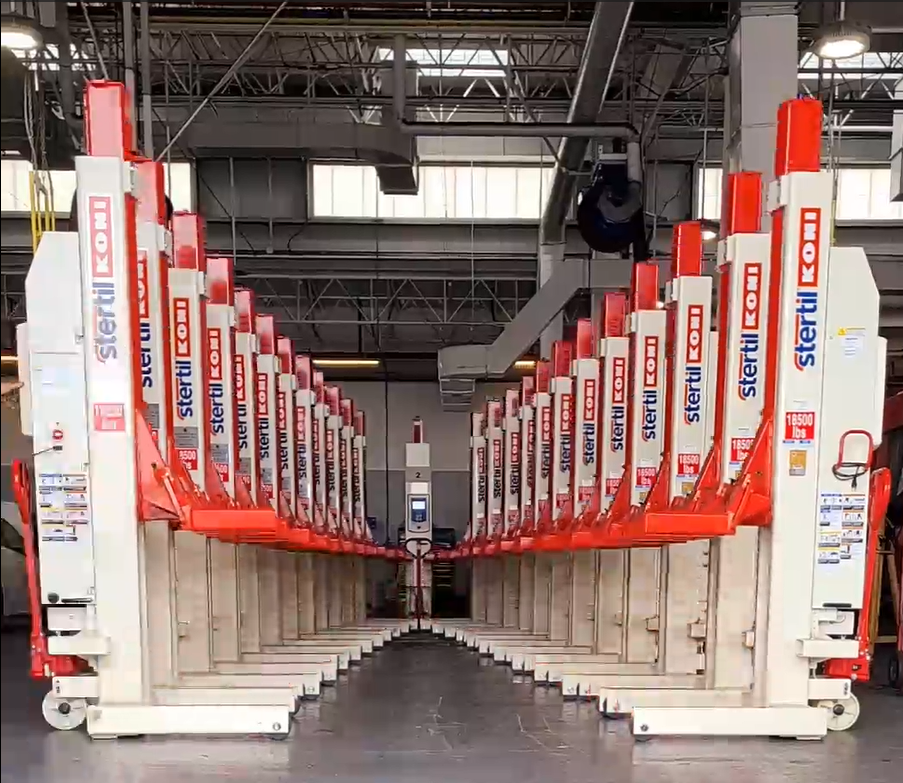

Mobile Column Lifts from Stertil-Koni allow you to safely lift a wide range of heavy duty vehicles quickly and efficiently. From delivery vans and pumper trucks to school buses and fire engines, from agricultural vehicles and airport tugs to class 8 tractor trailers and utility trucks, we lift them all. Lifting capacities range from 14,000 lbs to 40,000 lbs. per column.
These portable, powerful lifts are the most popular choice in the industry.
Mobile Column Lifts from Stertil-Koni are available in three versions:
Wireless Mobile Column Lifts
Cabled Mobile Column Lifts
EARTHLIFT
Available in Wireless, Cabled and EARTHLIFT models
Rapid lifting and lowering every time
Maximum strength with high tensile DOMEX steel
Full-color touch screen controls on all models
Mobile Column Specs
| Model | ST1064 | ST1065 | ST1075 | ST1085 | ST1100 | ST 1130 | ST1175 |
|---|---|---|---|---|---|---|---|
| Lifting Capacity |
14,000 lbs | 14,500 lbs | 16,500 lbs | 18,500 lbs | 22,000 lbs | 29,000 lbs | 40,000 lbs |
| Lift System |
Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Lifting Height |
73" | 73" | 73" | 73" | 73" | 81" | 81" |
| Lifting Time |
75 seconds | 94 seconds | 94 seconds | 94 seconds | 215 seconds | 215 seconds | |
| Column Height |
97" | 97" | 97" | 97" | 97" | 132" | 132" |
| Brochure | Brochure | Brochure | Brochure | Brochure | Brochure | Brochure |
Flexible & Versatile for all Workshops
The SKYLIFT platform lift is available in a variety of models suitable for not only a wide range of vehicles but also for a wide range of workshop situations. Do you have an existing workshop and do not want to renovate. Consider the surface-mounted SKYLIFT, requiring no pit construction.
For renovations or new workshops, consider the SKYLIFT flush mounted version and semi-flush hybrid version.
The SKYLIFT Wash Bay version is ideal for harsh outdoor installations. Water-resistant, anti-corrosion, hot-dipped galvanized steel platforms, and a sealed bay come standard on this rugged version.
Free access from all sides
No overhang, no crossbeams, no base frame
Mechanical locking system
True vertical lifting
Available in flush or surface mounted
Tandem configuration, up to 100 ft. in length with capacity of 156,000 lbs.
Automatic safeguard against overloading or uncontrolled descent
ebright Smart Control Console
The Stertil-Koni SKYLIFT is a superior heavy duty platform lift that uniquely provides a “clear floor” concept for the user with a true, vertical rise. The product’s elegant design includes two independent runways, vertical lifting, no crossbeams, no overhang and no base frame.
The SKYLIFT hydraulic vehicle lift provides free access from all sides with easy installation and minimal maintenance. The lift’s modular design allows for flush mounted or surface mounted installation and permits various lengths to be incorporated in a single lift.
See recent article in Modern Work Truck Solutions - "Lift with Care"
SKYLIFT Specifications
Capacity up to 35,000 lbs. per piston
Electronically synchronized for maximum safety and convenience
Hard-chrome plated piston rods for maximum protection against corrosion, wear and debris
Mechanical locking system utilizes a hardened, nitro carburized locking rod for maximum protection
ebright Smart Control System - Advanced Touchscreen Technology Offers Fingertip Control
All power units and control components are located above floor level
Low oil volume – only 4.5 gallons of hydraulic fluid required per piston
Aluminum trench covers with 13,600 lbs. drive over load
ALI Gold Certification Label
Continuous Recess movable lifting system
For Every Need a Solution
The DIAMONDLIFT is Stertil-Koni's state-of-the-art high-pressure telescopic piston lift. Optimum flexibility, productivity, durability and safe for the environment. The DIAMONDLIFT is available in a variety of configurations with 2, 3 or 4 piston configurations and two installation models: The DIAMONDLIFT Cassette and the DIAMONDLIFT Frame.
Both models are available in either a two, three or four piston configuration, with 32,000 lbs. or 35,000 lbs. per piston (depending on model), or a total of 140,000 lbs. in the four-piston configuration respectively. The lifting capacity of 30,000 lbs. per piston, makes the DIAMONDLIFT extremely versatile.
Stertil-Koni's inground telescopic piston DIAMONDLIFT set a new industry standard for inground lifts. The state-of-the-art DIAMONDLIFT gives you a choice in a variety of workshop situations.
Whether you are building a new workshop; want to renovate or have difficult building conditions, there is a Stertil-Koni inground DIAMONDLIFT which can be configured specifically for your circumstances.
DIAMONDLIFT is available in two, three and four-piston configurations with lifting capacities of up to 35,000 lbs. per piston -- thus 64,000 lbs.- 70,000 lbs. (two pistons) and 96,000 lbs. - 105,000 lbs. (three pistons) and 105,000 lbs. - 140,000 lbs. (four pistons) respectively.
DIAMONDLIFT now comes with the optional Continuous Recess® movable lifting system. The Continuous Recess version with a broad base frame or cassette is recommended for vehicles with low ground clearance, for example, city transit and articulated buses preventing damage to the undercarriage of the vehicle. The movable pistons can recess below floor level anywhere within the travel range.
DIAMONDLIFT Specifications
| Model | DIAMONDLIFT 64/2-Piston |
DIAMONDLIFT 70/2-Piston |
DIAMONDLIFT 96/3-Piston |
DIAMONDLIFT 105/3-Piston |
DIAMONDLIFT 128/4-Piston |
DIAMONDLIFT 140/4-Piston |
|---|---|---|---|---|---|---|
| Lifting Capacity | 64,000 lbs | 70,000 lbs | 96,000 lbs | 105,000 lbs | 128,000 lbs | 140,000 lbs |
| Lifting Height | 73" | 73" | 73" | 73" | 73" | 73" |
| Pit Depth | 72" | 72" | 72" | 72" | 72" | 72" |
| Travel Range | 10, 13, 17 feet | 10, 13, 17 feet | 10, 13, 17 feet | 10, 13, 17 feet | 10, 13, 17 feet | 10, 13, 17 feet |
| Minimum Wheel Base | 72" | 72" | 72" | 72" | 72" | 72" |
| Lifting Time | 90 seconds | 90 seconds | 90 seconds | 90 seconds | 90 seconds | 90 seconds |
| Compressed Air | 90 PSI at 5 CFM | 90 PSI at 5 CFM | 90 PSI at 5 CFM | 90 PSI at 5 CFM | 90 PSI at 5 CFM | 90 PSI at 5 CFM |
| Electrical | 208-230/460/575 | 208-230/460/575 | 208-230/460/575 | 208-230/460/575 | 208-230/460/575 | 208-230/460/575 |
| Motor Power | 2 x 5 horsepower | 2 x 5 horsepower | 3 x 5 horsepower | 3 x 5 horsepower | 4 x 5 horsepower | 4 x 5 horsepower |
| Brochure | Brochure | Brochure | Brochure | Brochure | Brochure |
ECOLIFT is the industry’s original ultra-shallow, full-rise axle-engaging inground scissor lift.
Available in a 2, 3 or 4 scissor configuration, with a total lifting capacity of 60,000 lbs., 90,000 lbs., and 120,000 lbs. respectively – at 30,000 lbs. per scissor.
Wheels-free lifting with superior ease-of-use and performance
Ultra-shallow pit design, only 34”
Ideal for retrofit installations and new workshops
Full rise 70” lifting height for maximum convenience and usability
Electronically synchronized for ultimate safety
Free-standing console provides easy access for quick service and maintenance
Continuous recess for maximum flexibility
Wheels Free Maintenance Suited for Shallow Depth Installations
The Stertil-Koni inground scissor ECOLIFT keeps the vehicle's wheels fully accessible, making it ideal for brake jobs and suspension work among other service jobs benefitting from a wheels-free lifting approach.
The ECOLIFT's shallow-pit construction has a depth of just half of the lighting height. With an installation depth of 34", the ECOLIFT is ideal in installations with high water tables, unstable soil, or thick bedrock foundations.
Not only is the installation depth extremely low, the ECOLIFT arrives on site pre-assembled and tested. The ECOLIFT is a drop-in/bolt-in design, which makes installation a breeze. Additionally, the ECOLIFT is the only relocatable inground lifting system in the world.
ECOLIFT Specifications
| Model | ECO 60 | ECO 90 | ECO 120 |
|---|---|---|---|
| Lifting Capacity | 60,000 lbs | 90,000 lbs | 120,000 lbs |
| Lifting Height | 70" | 70" | 70" |
| Pit Depth | 34" | 34" | 34" |
| Travel Range | 10, 13, 17 feet | 10, 13, 17 feet | 10, 13, 17 feet |
| Minimum Wheel Base | 48" | 48" | 48" |
| Lifting Time | 90 seconds | 90 seconds | 90 seconds |
| Compressed Air | 90 PSI at 5 CFM | 90 PSI at 5 CFM | 90 PSI at 5 CFM |
| Electrical | 208-230/460/575 | 208-230/460/575 | 208-230/460/575 |
| Motor Power | 2 x 5 horsepower | 3 x 5 horsepower | 4 x 5 horsepower |
| Brochure | Brochure | Brochure |
Dependable hydraulic technology
Very low drive-on height
Ideal for low-ground-clearance vehicles
Runways available in multiple lengths (depending on model)
Automatic overload protection
Independent mechanical locking system
Tandem configurations
Stertil-Koni Heavy Duty 4-Post Lifts are available in four models and suitable for lifting a wide range of commercial vehicles -- even 3 wheel forklift trucks.
4-Post lifts from Stertil-Koni are available in four models:
The ST 4120 is one of the most advanced and unique medium capacity HD four post lifts, featuring electronic synchronization and a lifting capacity up to 30,000 lbs.
The ST 4175 model has a lifting capacity up to 50,000 lbs. and is designed free of cross beams for complete access.
And, the ST 4250 really stands out in heavy duty lifting, with a capacity of 66,000 lbs., or 132,000 lbs. in a tandem configuration.
The ST 4600, with a capacity of 132,000 lbs. is truly a unique drive-on platform lift and is regarded as the largest certified platform lift of its type in North America.
4-Post Lift Specifications
| Model | ST 4120 | ST 4175 | ST 4250 | ST 4600 |
|---|---|---|---|---|
| Lifting Capacity | 30,000 lbs | 50,000 lbs | 66,000 lbs | 132,000 lbs |
| Runway Lengths | 15' / 20' and 26' | 19'-8 1/16" / 26'-2 3/4" 29'-6 1/8" / 32'-9 7/16" and 37'-8 7/16" |
19'-7 11/16" / 26'-2 1/18" 29'-5 5/16" / 32'-9 1/16" and 37'-8 1/16" |
36' 3" |
| Lifting System | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Lifting Height | 74 1/2" | 75" | 75" | 74" |
| Liftting Time | 90 seconds | 72 seconds | 72 seconds | `190 seconds |
| Motor | 1 x 7.5 horsepower | 4 x 3 horsepower | 4 x 3 horsepower | 4 x 3 horsepower |
| Brochure | Brochure | Brochure |
Flexible and efficient
Optimal workshop space
Single and double telescopic arms
Extended Flex Arms (EFA) offers maximum flexibility
ANSI/ALI-ALCTV / CSA Certified
FREEDOMLIFT combines peak performance and safety through a symmetrical, open floor design that optimizes workspace in the shop. Engineered to lift a broad range of light-to-medium-duty vehicles with capacities ranging from 16,000 lbs. to 30,000 lbs.
FREEDOMLIFT Specifications
| Model | SK 2.16EFA* | SK 2.16 | SK 2.20 | SK 2.26 | SK 2.30 |
|---|---|---|---|---|---|
| Lifting Capacity | 16,000 lbs | 16,000 lbs | 20,000 lbs | 26,000 lbs | 30,000 lbs |
| Lifting Height | 80.7" | 80.6" |
77.9 - 78.5" |
77.9 - 78.5" | 77.9 - 78.5" |
| Pick-up Height | 5.9" | 5.8" | 5.1 - 5.7" | 5.1 - 5.7" | 5.1 - 5.7" |
| Minimum Single Telescopic Arm Length |
N/A | N/A | 38.2" | 38.2" | 38.2" |
| Maximum Single Telescopic Arm Length |
N/A | N/A | 63.4" | `63.4" | 63.4" |
| Minimum Double Telescoping Arm Length |
19.5" | 35.4" | 35.4" | 35.4" | 35.4" |
| Maximum Double Telescopic Arm Length |
56.3" | 77.2" | 76.4" | 76.4" | 76.4" |
| Lifting Time | 58 seconds | 58 seconds | 58 seconds | 95 seconds | 95 seconds |
| Power Output | 5 horsepower | 5 horsepower | 5 horsepower | 5 horsepower | 5 horsepower |
| Brochure | Brochure | Brochure | Brochure | Brochure | |
| * Flexible Dimensions | |||||
